Researchers at NREL investigating use of perovskite semiconductors for solar cells proven to be highly efficient at converting sunlight to electricity.
March 15, 2021
By: Anthony Locicero
Copy editor, New York Post
The inclusion of a special new perovskite layer has enabled scientists to create a “spin-polarized LED” without needing a magnetic field or extremely low temperatures, potentially clearing the path to a raft of novel technologies, the National Renewable Energy Laboratory reported.
Details of the research conducted at NREL and the University of Utah appear in the journal Science.
Researchers at NREL and around the world have been investigating the use of perovskite semiconductors for solar cells that have proven to be highly efficient at converting sunlight to electricity. Since a solar cell is one of the most demanding applications of any semiconductor, scientists are discovering other uses exist as well.
“We are exploring the fundamental properties of metal-halide perovskites, which has allowed us to discover new applications, beyond photovoltaics,” said Joseph Luther, a co-author of the new paper, “Chiral-induced spin selectivity enabling a room-temperature spin light-emitting diode.”
“Because metal-halide perovskites, and other related systems, are some of the most fascinating semiconductors, they exhibit a host of novel phenomena that can be utilized in transforming energy,” Luther added.
The other co-authors from NREL are Matthew Beard, a senior research fellow and director of the Center for Hybrid Organic-Inorganic Semiconductors for Energy (CHOISE), Young-Hoon Kim, Yaxin Zhai, Haipeng Lu, Chuanxiao Xiao, E. Ashley Gaulding, Steven Harvey, and Joseph Berry. Valy Vardeny and Xin Pan are co-authors from Utah. All are part of CHOISE, an Energy Frontier Research Center (EFRC) funded by the Office of Science within DOE.
The goals of the CHOISE EFRC are to control the interconversion of charge, spin, and light using carefully designed chemical systems.
Most optoelectronic devices in use today only control charge and light and not the spin of the electron. An electron can have either “up” or “down” spins. Using two different perovskite layers, the researchers were able to control the spin by creating a filter that blocks electrons “spinning” in the wrong direction.
One way to produce spin-polarized currents is through a “chiral-induced spin selectivity” layer, where the transport of electrons with “up” or “down” spin states depends upon the chirality of the transporting materials.
Chirality refers to the materials structure where it is not identical to its mirror image.
For example, a “left-handed” oriented chiral system may allow the transport of electrons with “up” spins but block electrons with “down” spins and vice versa.

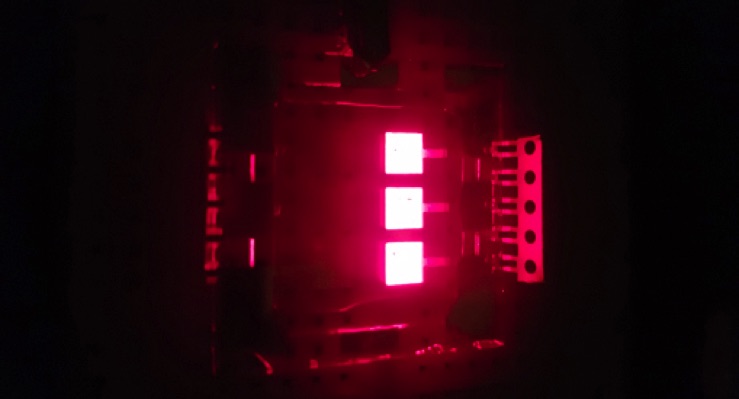

The filter enabled the researchers to inject spin-polarized charges into a light-emitting diode (LED) at room temperature—instead of at hundreds of degrees below zero Fahrenheit—and without the use of magnetic fields or ferromagnetic contacts that are typically needed to control the spin degree of freedom.
The LED, in response, emits light with special chiral properties, accordingly. The concept proves that using these chiral-hybrid systems gains control over spin without magnets and has “broad implications for applications such as quantum-based optical computing, bio-encoding, and tomography,” according to Beard.
