Imec Beats Silicon PV with 27.1% Perovskite-Silicon Tandem

Imec, within the partnership of EnergyVille, announced a record result for its 4-terminal perovskite/silicon tandem photovoltaic cell. With a power conversion efficiency of 27.1%, the new imec tandem cell beats the most efficient stand-alone silicon solar cell. Further careful engineering of the perovskite material will bring efficiencies over 30% in reach.

Perovskite microcrystals are a promising material system to make high-performance thin-film solar cells. They can be processed into thin, light, semitransparent modules that can achieve a high-power conversion efficiency, are inexpensive to produce, and have a high absorption efficiency for sunlight. Because they can be made semitransparent, perovskite solar cells and modules can also be used on top of silicon solar cells.

When the perovskite is carefully engineered, the absorbance in the perovskite minimizes the thermal losses that occur in the silicon cell. As a result, a perovskite-silicon tandem solar cell can potentially reach power conversion efficiencies above 30%.

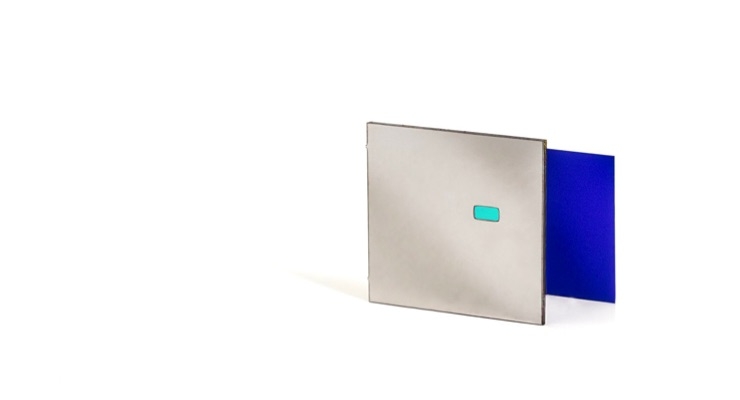

Imec’s new record tandem cell uses a 0.13 cm² spin-coated perovskite cell developed within its Solliance cooperation stacked on top of a 4 cm² industrial interdigitated back-contact (IBC) silicon cell in a 4-terminal configuration, which is known to have a higher annual energy yield compared to a 2-terminal configuration. Additionally, scaling up the tandem device by using a 4 cm2 perovskite module on a 4 cm2 IBC silicon cell, a tandem efficiency of 25.3% was achieved, surpassing the stand-alone efficiency of the silicon cell.

“We have been working on this tandem technology for two years now, and the biggest difference with previous versions is in the engineering and processing of the perovskite absorber, tuning its bandgap to optimize the efficiency for tandem configuration with silicon,” said Manoj Jaysankar, doctoral researcher at imec/EnergyVille.

“Adding perovskite on top of industrial silicon PV may prove to be the most cost-effective approach to further improve the efficiency of photovoltaics,” added Tom Aernouts, group leader for thin-film photovoltaics at imec/EnergyVille.
